Data Description and Exploration#

Data Description#

Wide World Importers (WWI) is a wholesale importer and distributor operating in the San Francisco Bay Area.

WWI’s customers are primarily companies that resell goods to individuals. WWI sells to retail customers across the United States, including specialty stores, supermarkets, computer stores, and some individuals. WWI also sells to other wholesalers through a network of agents who promote products on behalf of WWI.

WWI purchases goods from suppliers. They store the goods in their WWI warehouse and reorder from suppliers as needed to fulfill customer orders. They also purchase large volumes of packaging materials and sell them in smaller quantities for customer convenience.

The WWI database contains many different schemas. For our analysis, we will need the following schemas.

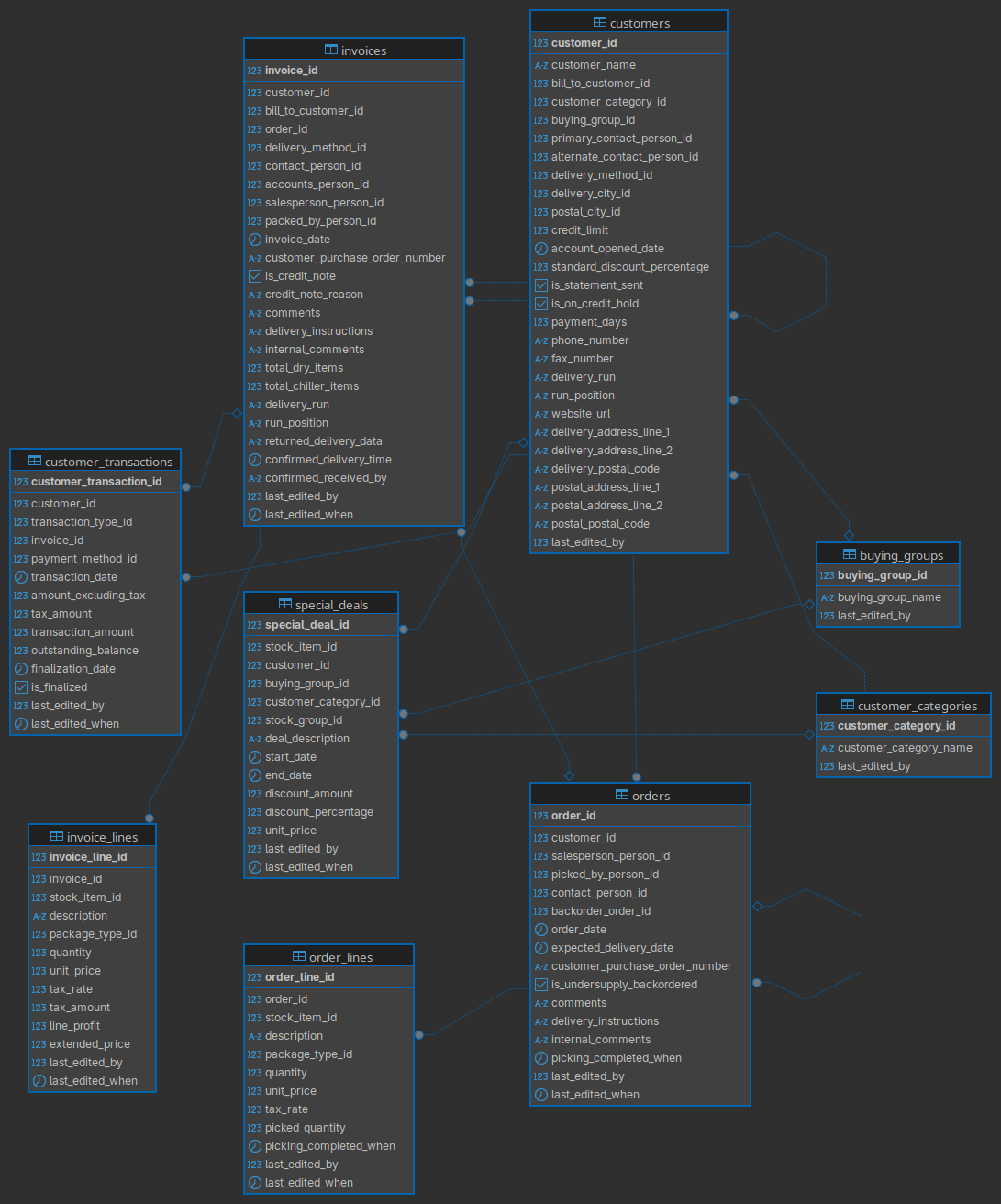

Sales Schema#

Data on product sales to customers.

We will need the following tables and fields in this schema:

sales.orders

Field	Description
order_id	Order ID.
customer_id	ID of the customer who placed the order.
order_date	Date the order was created.
expected_delivery_date	Expected delivery date of the order.
picking_completed_when	Time when order picking was completed.

sales.order_lines

Field	Description
order_line_id	Order line ID.
order_id	Order ID to which this line belongs.
stock_item_id	ID of the stock item (from the warehouse.stock_items table) specified in the order line.
package_type_id	ID of the package type (from the warehouse.package_types table) used for the item.
quantity	Quantity of the item to be supplied.
unit_price	Price per unit of the item.
tax_rate	Tax rate applied to the item.
picked_quantity	Quantity of the item that was picked from the warehouse.
picking_completed_when	Time when picking for this order line was completed.

sales.customer_categories

Field	Description
customer_category_id	Customer category ID.
customer_category_name	Full name of the category to which customers can be assigned.

sales.customers

Field	Description
customer_id	Customer ID.
customer_name	Full name of the customer (usually the trade name).
customer_category_id	ID of the customer’s category.
delivery_method_id	ID of the standard delivery method for goods shipped to this customer.
delivery_city_id	ID of the delivery city for this address.

sales.invoices

Field	Description
invoice_id	Invoice ID.
customer_id	ID of the customer to whom the invoice is issued.
order_id	ID of the order associated with this invoice.
delivery_method_id	ID of the delivery method for the goods listed in the invoice.
invoice_date	Date when the invoice was issued.
confirmed_delivery_time	Confirmed delivery time.

sales.invoice_lines

Field	Description
invoice_line_id	Invoice line ID.
invoice_id	ID of the invoice to which this line belongs.
stock_item_id	ID of the stock item (from the warehouse.stock_items table) specified in the invoice line.
package_type_id	ID of the package type (from the warehouse.package_types table) used for the item.
quantity	Quantity of the item specified in the invoice line.
unit_price	Price per unit of the item.
tax_rate	Tax rate applied to the item.
tax_amount	Tax amount calculated for the invoice line.
line_profit	Profit earned from this invoice line, based on the current cost price.
extended_price	Total cost of the invoice line (\(\text{quantity} * \text{unit\_price} + \text{tax\_amount}\)).

sales.customer_transactions

Field	Description
customer_transaction_id	Transaction ID.
customer_id	ID of the customer associated with this transaction.
transaction_type_id	ID of the transaction type (e.g., invoice, payment, credit note).
invoice_id	ID of the invoice associated with this transaction (if applicable).
payment_method_id	ID of the payment method (e.g., cash, bank transfer).
transaction_date	Transaction date.
amount_excluding_tax	Transaction amount excluding tax.
tax_amount	Tax amount calculated for the transaction.
transaction_amount	Total transaction amount (including tax).
outstanding_balance	Amount still unpaid for this transaction. Indicates the outstanding debt for the transaction.
finalization_date	Date when the transaction was finalized (if finalized).

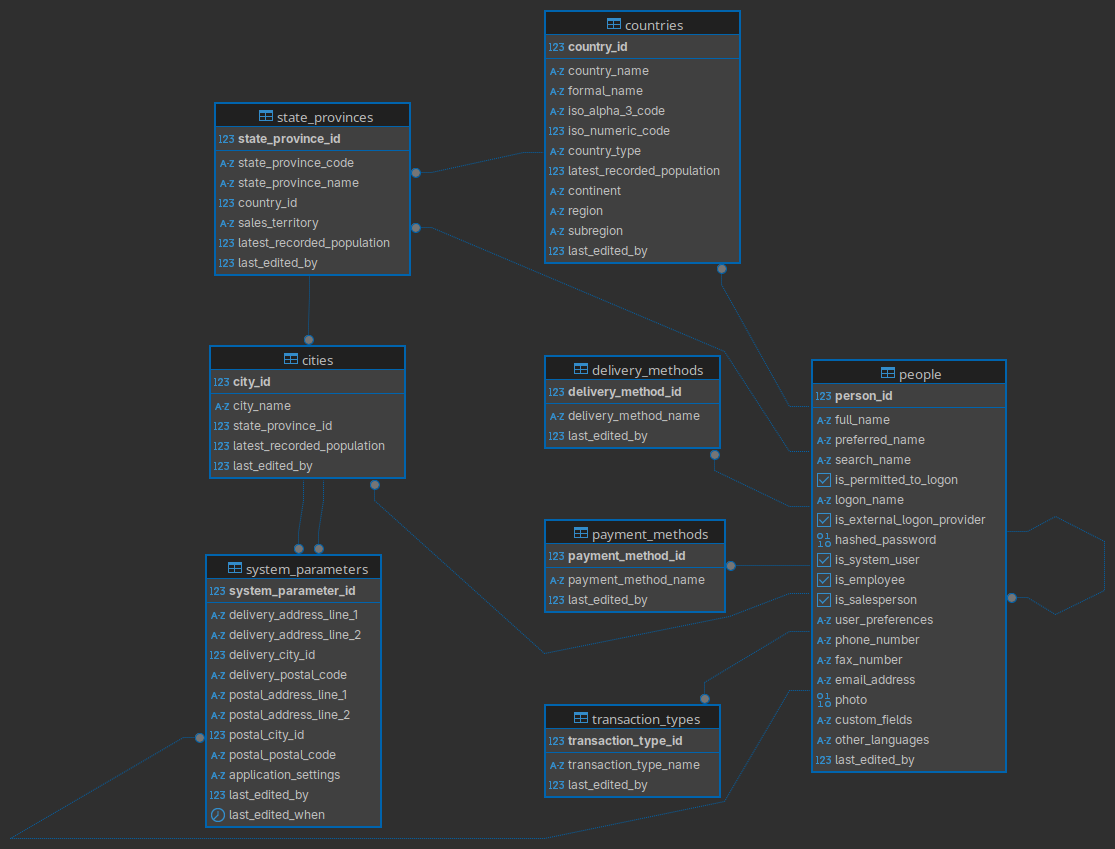

Application Schema#

Reference data and system settings.

We will need the following tables and fields in this schema:

application.countries

Field	Description
country_id	Country ID
country_name	Country name

application.state_provinces

Field	Description
state_province_id	State or province ID
state_province_name	Official name of the state or province
country_id	Country for this state or province

application.cities

Field	Description
city_id	City ID
city_name	Official name of the city
state_province_id	State or province for this city

application.delivery_methods

Field	Description
delivery_method_id	Delivery method ID
delivery_method_name	Delivery method name

application.payment_methods

Field	Description
payment_method_id	Payment method ID
payment_method_name	Payment method name

application.transaction_types

Field	Description
transaction_type_id	Transaction type ID in the database
transaction_type_name	Full name of the transaction type

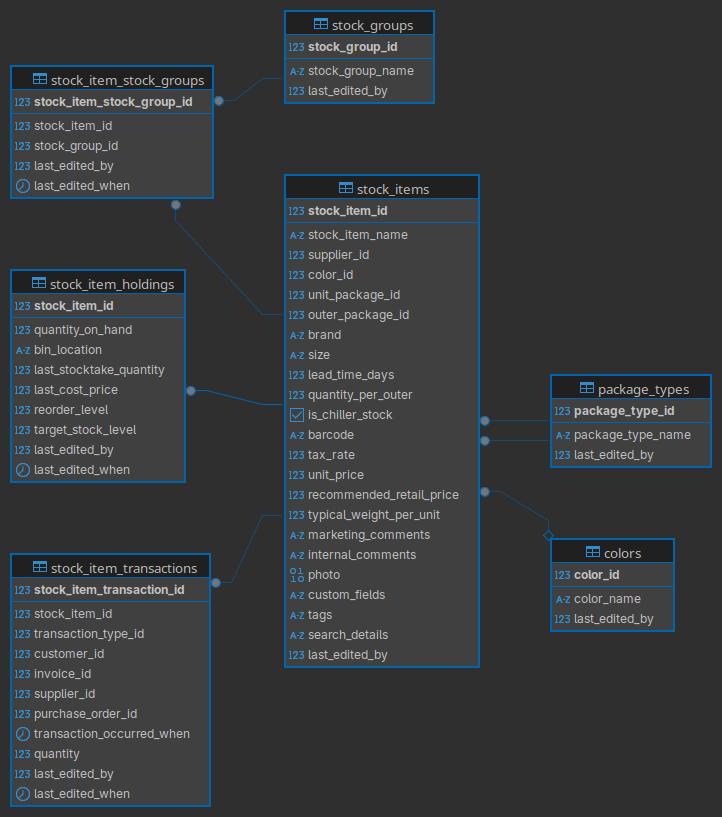

Warehouse Schema#

Data on inventory and warehouse operations.

We will need the following tables and fields in this schema:

warehouse.stock_items

Field	Description
stock_item_id	Stock item ID
stock_item_name	Full name of the stock item
color_id	Color ID of the item
size	Item size

warehouse.stock_item_stock_groups

Field	Description
stock_item_stock_group_id	Record ID in the table (this is a junction table)
stock_item_id	Stock item ID
stock_group_id	Stock group ID

warehouse.stock_groups

Field	Description
stock_group_id	Stock group ID
stock_group_name	Stock group name

warehouse.package_types

Field	Description
package_type_id	Package type ID
package_type_name	Full name of the package type

warehouse.colors

Field	Description
color_id	Color ID
color_name	Color name

Creating Functions#

Let’s switch to the source schema.

con('src')

Connected to srс

Let’s create a function that will output information about a column.

%%sql
CREATE OR REPLACE FUNCTION get_column_summary(
    table_name TEXT,
    column_name TEXT,
    only_summary BOOLEAN DEFAULT FALSE
)
RETURNS TABLE(
    "Summary Type" TEXT,
    "Summary Count" TEXT,
    "-" TEXT,
    "Stats Type" TEXT,
    "Stats Value" TEXT,
    "--" TEXT,
    "Top Values" TEXT
) AS $$
DECLARE
    sql_query TEXT;
    schema_name TEXT;
    table_only_name TEXT;
    column_type TEXT;
    is_numeric BOOLEAN;
BEGIN
    IF strpos(table_name, '.') > 0 THEN
        schema_name := split_part(table_name, '.', 1);
        table_only_name := split_part(table_name, '.', 2);
    ELSE
        schema_name := 'public';
        table_only_name := table_name;
    END IF;
    -- We get the type of column data
    EXECUTE format('SELECT data_type FROM information_schema.columns
                   WHERE table_schema = %L AND table_name = %L AND column_name = %L',
                   schema_name, table_only_name, column_name)
    INTO column_type;
    -- Check if the type is numerical
    is_numeric := column_type IN ('smallint', 'integer', 'bigint', 'decimal', 'numeric', 'real', 'double precision');

    sql_query :=
        'WITH
        column_summary AS (
            SELECT
                *
                , row_number() OVER () AS dummy_id
            FROM (
                SELECT
                    ''Total Count'' AS summary_1, COUNT(*) AS summary_2
                FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                UNION ALL
                SELECT
                    ''Unique Count'', COUNT(DISTINCT ' || quote_ident(column_name) || ')
                FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                UNION ALL
                SELECT
                    ''Missing'', COUNT(*) FILTER (WHERE ' || quote_ident(column_name) || ' IS NULL)
                FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                UNION ALL
                SELECT
                    ''Duplicated'', COUNT(' || quote_ident(column_name) || ') - COUNT(DISTINCT ' || quote_ident(column_name) || ')
                FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                ';
    IF is_numeric THEN
        sql_query := sql_query || '
                UNION ALL
                SELECT
                    ''Zero'', COUNT(' || quote_ident(column_name) || ') FILTER (WHERE ' || quote_ident(column_name) || ' = 0)
                FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                UNION ALL
                SELECT
                    ''Negative'', COUNT(' || quote_ident(column_name) || ') FILTER (WHERE ' || quote_ident(column_name) || ' < 0)
                FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                ';
    ELSE
        sql_query := sql_query || '
                UNION ALL
                SELECT
                    ''Zero'', NULL
                UNION ALL
                SELECT
                    ''Negative'', NULL
                ';
    END IF;
    sql_query := sql_query || '
            )
        )';

IF NOT only_summary THEN
    IF is_numeric THEN
        sql_query := sql_query || '
            , column_stats AS (
                SELECT
                    *
                    , row_number() OVER () AS dummy_id
                FROM (
                    SELECT
                        ''Max'' AS stats_1, MAX(' || quote_ident(column_name) || ') AS stats_2
                    FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                    UNION ALL
                    SELECT
                        ''75%'', PERCENTILE_CONT(0.75) WITHIN GROUP (ORDER BY ' || quote_ident(column_name) || ')
                    FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                    UNION ALL
                    SELECT
                        ''Mean'', ROUND(AVG(' || quote_ident(column_name) || '), 2)
                    FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                    UNION ALL
                    SELECT
                        ''Median'', PERCENTILE_CONT(0.50) WITHIN GROUP (ORDER BY ' || quote_ident(column_name) || ')
                    FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                    UNION ALL
                    SELECT
                        ''25%'', PERCENTILE_CONT(0.25) WITHIN GROUP (ORDER BY ' || quote_ident(column_name) || ')
                    FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                    UNION ALL
                    SELECT
                        ''Min'', MIN(' || quote_ident(column_name) || ')
                    FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                ) AS t
            )';
    ELSE
        sql_query := sql_query || '
            , column_stats AS (
                SELECT
                    *
                    , row_number() OVER () AS dummy_id
                FROM (
                    SELECT
                        ''Max'' AS stats_1, MAX(' || quote_ident(column_name) || ') AS stats_2
                    FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                    UNION ALL
                    SELECT
                        ''75%'', NULL AS stats_2
                    UNION ALL
                    SELECT
                        ''Mean'', NULL AS stats_2
                    UNION ALL
                    SELECT
                        ''Median'', NULL AS stats_2
                    UNION ALL
                    SELECT
                        ''25%'', NULL AS stats_2
                    UNION ALL
                    SELECT
                        ''Min'', MIN(' || quote_ident(column_name) || ')
                    FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                ) AS t
            )';
    END IF;

    sql_query := sql_query || '
            , top_values AS (
                SELECT
                    *
                    , row_number() OVER () AS dummy_id
                FROM (
                    SELECT
                        ' || quote_ident(column_name) || '::TEXT || '' ('' || COUNT(*)::TEXT || '')'' AS top_count
                    FROM ' || quote_ident(schema_name) || '.' || quote_ident(table_only_name) || '
                    WHERE ' || quote_ident(column_name) || ' IS NOT NULL
                    GROUP BY ' || quote_ident(column_name) || '
                    ORDER BY COUNT(*) DESC, ' || quote_ident(column_name) || '::TEXT
                    LIMIT 6
                ) AS t
            )';
END IF;
    if only_summary then
        sql_query := sql_query || '
                SELECT
                    summary_1::TEXT AS "Type",
                    summary_2::TEXT AS "Count",
                    '' '' AS " ",
                    '' '' AS " ",
                    '' '' AS " ",
                    '' '' AS " ",
                    '' '' AS " "
                FROM
                    column_summary;';
    else
        sql_query := sql_query || '
                SELECT
                    summary_1::TEXT AS "Type",
                    summary_2::TEXT AS "Count",
                    '' '' AS " ",
                    stats_1::TEXT AS "Type",
                    stats_2::TEXT AS "Value",
                    '' '' AS " ",
                    top_count::TEXT AS "Top Values"
                FROM
                    column_summary
                    LEFT JOIN column_stats USING(dummy_id)
                    LEFT JOIN top_values USING(dummy_id);';
    end if;
    RETURN QUERY EXECUTE sql_query;
END;
$$ LANGUAGE plpgsql;

Let’s create a function that will show information about the relationship between tables.

%%sql
CREATE OR REPLACE FUNCTION analyze_relationship(
    left_table_name TEXT,
    right_table_name TEXT,
    left_key_name TEXT,
    right_key_name TEXT
)
RETURNS TABLE (
    relationship_type TEXT,
    left_only_keys BIGINT,
    right_only_keys BIGINT,
    left_size BIGINT,
    right_size BIGINT,
    common_keys BIGINT
) AS $$
DECLARE
    left_count BIGINT;
    right_count BIGINT;
    left_distinct_count BIGINT;
    right_distinct_count BIGINT;
    common_count BIGINT;
    left_only_count BIGINT;
    right_only_count BIGINT;
    max_right_per_left_val BIGINT;
    max_left_per_right_val BIGINT;
    rel_type TEXT;
BEGIN
    -- Basic counts
    EXECUTE format('SELECT COUNT(DISTINCT %I), COUNT(*) FROM %s',
                  left_key_name, left_table_name)
    INTO left_distinct_count, left_count;

    EXECUTE format('SELECT COUNT(DISTINCT %I), COUNT(*) FROM %s',
                  right_key_name, right_table_name)
    INTO right_distinct_count, right_count;

    -- Common keys
    EXECUTE format('
        SELECT COUNT(DISTINCT l.%I)
        FROM %s l
        WHERE EXISTS (SELECT 1 FROM %s r WHERE r.%I = l.%I)',
        left_key_name, left_table_name, right_table_name, right_key_name, left_key_name)
    INTO common_count;

    -- Keys only in left/right
    left_only_count := left_distinct_count - common_count;
    right_only_count := right_distinct_count - common_count;

    -- Max right per left key
    EXECUTE format('
        SELECT COALESCE(MAX(cnt), 0) FROM (
            SELECT COUNT(r.%I) as cnt
            FROM %s r
            WHERE r.%I IN (SELECT %I FROM %s)
            GROUP BY r.%I
        ) t',
        right_key_name, right_table_name, right_key_name, left_key_name, left_table_name, right_key_name)
    INTO max_right_per_left_val;

    -- Max left per right key
    EXECUTE format('
        SELECT COALESCE(MAX(cnt), 0) FROM (
            SELECT COUNT(l.%I) as cnt
            FROM %s l
            WHERE l.%I IN (SELECT %I FROM %s)
            GROUP BY l.%I
        ) t',
        left_key_name, left_table_name, left_key_name, right_key_name, right_table_name, left_key_name)
    INTO max_left_per_right_val;

    -- Determine relationship type
    IF max_right_per_left_val <= 1 AND max_left_per_right_val <= 1 THEN
        rel_type := '1:1';
    ELSIF max_left_per_right_val > 1 AND max_right_per_left_val <= 1 THEN
        rel_type := 'N:1';
    ELSIF max_left_per_right_val <= 1 AND max_right_per_left_val > 1 THEN
        rel_type := '1:N';
    ELSIF common_count > 0 THEN
        rel_type := 'N:M';
    ELSE
        rel_type := 'no_relation';
    END IF;

    RETURN QUERY SELECT
        rel_type,
        left_only_count,
        right_only_count,
        left_count,
        right_count,
        common_count;
END;
$$ LANGUAGE plpgsql;

Data Exploration#

Before developing the dashboard, let’s explore the necessary tables and fields, as well as the relationships between them.

Variable Exploration#

Sales Schema#

Table sales.orders#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    sales.orders
LIMIT 5

	order_id	customer_id	salesperson_person_id	picked_by_person_id	contact_person_id	backorder_order_id	order_date	expected_delivery_date	customer_purchase_order_number	is_undersupply_backordered	comments	delivery_instructions	internal_comments	picking_completed_when	last_edited_by	last_edited_when
0	2	803	8	NaN	3003	46.0	2013-01-01	2013-01-02	15342	True	None	None	None	2013-01-01 12:00:00	7	2013-01-01 12:00:00
1	3	105	7	NaN	1209	47.0	2013-01-01	2013-01-02	12211	True	None	None	None	2013-01-01 12:00:00	7	2013-01-01 12:00:00
2	4	57	16	3.0	1113	NaN	2013-01-01	2013-01-02	17129	True	None	None	None	2013-01-01 11:00:00	3	2013-01-01 11:00:00
3	5	905	3	NaN	3105	48.0	2013-01-01	2013-01-02	10369	True	None	None	None	2013-01-01 12:00:00	7	2013-01-01 12:00:00
4	6	976	13	3.0	3176	NaN	2013-01-01	2013-01-02	13383	True	None	None	None	2013-01-01 11:00:00	3	2013-01-01 11:00:00

Let’s examine each column we will use for creating the dashboard individually.

order_id

%%sql
SELECT * FROM get_column_summary('sales.orders', 'order_id', True);

	Summary Type	Summary Count
0	Missing	0
1	Unique Count	73595
2	Zero	0
3	Total Count	73595
4	Duplicated	0
5	Negative	0

customer_id

%%sql
SELECT * FROM get_column_summary('sales.orders', 'customer_id', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Missing	0	Max	1061	90 (150)
1	Unique Count	663	75%	877	831 (147)
2	Zero	0	Mean	528.79	968 (146)
3	Duplicated	72932	Median	518	405 (145)
4	Negative	0	25%	160	804 (145)
5	Total Count	73595	Min	1	143 (144)

order_date

%%sql
SELECT * FROM get_column_summary('sales.orders', 'order_date', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Negative	None	25%	None	2016-01-06 (133)
1	Duplicated	72526	Median	None	2015-10-19 (127)
2	Total Count	73595	Mean	None	2015-07-06 (126)
3	Zero	None	75%	None	2015-02-03 (125)
4	Unique Count	1069	Min	2013-01-01	2016-04-28 (123)
5	Missing	0	Max	2016-05-31	2015-02-23 (122)

expected_delivery_date

%%sql
SELECT * FROM get_column_summary('sales.orders', 'expected_delivery_date', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Negative	None	25%	None	2015-03-02 (173)
1	Unique Count	891	Median	None	2015-04-06 (167)
2	Total Count	73595	Mean	None	2015-03-30 (164)
3	Zero	None	75%	None	2015-09-14 (164)
4	Duplicated	72704	Min	2013-01-02	2014-04-28 (163)
5	Missing	0	Max	2016-06-01	2016-04-11 (163)

picking_completed_when

%%sql
SELECT * FROM get_column_summary('sales.orders', 'picking_completed_when', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Negative	None	25%	None	2016-02-26 11:00:00 (107)
1	Duplicated	68386	Median	None	2016-04-18 11:00:00 (107)
2	Total Count	73595	Mean	None	2016-01-07 11:00:00 (106)
3	Zero	None	75%	None	2016-05-04 11:00:00 (106)
4	Unique Count	2124	Min	2013-01-01 11:00:00	2016-02-24 11:00:00 (104)
5	Missing	3085	Max	2016-05-31 12:00:00	2015-01-21 11:00:00 (103)

Let’s look at rows with missing values in picking_completed_when.

%%sql
SELECT
    *
FROM
    sales.orders
WHERE
    picking_completed_when is NULL
LIMIT 5

	order_id	customer_id	salesperson_person_id	picked_by_person_id	contact_person_id	backorder_order_id	order_date	expected_delivery_date	customer_purchase_order_number	is_undersupply_backordered	comments	delivery_instructions	internal_comments	picking_completed_when	last_edited_by	last_edited_when
0	694	430	13	None	2059	None	2013-01-12	2013-01-14	18641	True	None	None	None	None	5	2013-01-12 12:00:00
1	858	197	13	None	1393	None	2013-01-15	2013-01-16	17999	True	None	None	None	None	9	2013-01-15 12:00:00
2	863	538	2	None	2275	None	2013-01-15	2013-01-16	13574	True	None	None	None	None	9	2013-01-15 12:00:00
3	865	926	2	None	3126	None	2013-01-15	2013-01-16	18066	True	None	None	None	None	9	2013-01-15 12:00:00
4	1065	70	20	None	1139	None	2013-01-19	2013-01-21	12157	True	None	None	None	None	19	2013-01-19 12:00:00

Key Observations:

There are missing values in the picking_completed_when column. These same rows also have missing values in picked_by_person_id. Most likely, the order was not picked. Possibly the item was out of stock.
No critical anomalies were found.
The sales.orders table contains order data from 2013-01-01 to 2016-05-31.

Table sales.order_lines#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    sales.order_lines
LIMIT 5

	order_line_id	order_id	stock_item_id	description	package_type_id	quantity	unit_price	tax_rate	picked_quantity	picking_completed_when	last_edited_by	last_edited_when
0	1	45	164	32 mm Double sided bubble wrap 50m	7	50	112.00	15.000	50	2013-01-02 11:00:00	4	2013-01-02 11:00:00
1	2	1	67	Ride on toy sedan car (Black) 1/12 scale	7	10	230.00	15.000	10	2013-01-01 11:00:00	3	2013-01-01 11:00:00
2	3	2	50	Developer joke mug - old C developers never di...	7	9	13.00	15.000	9	2013-01-01 11:00:00	3	2013-01-01 11:00:00
3	4	46	89	"The Gu" red shirt XML tag t-shirt (Black) 3XS	7	72	18.00	15.000	72	2013-01-02 11:00:00	4	2013-01-02 11:00:00
4	5	46	171	32 mm Anti static bubble wrap (Blue) 10m	7	90	32.00	15.000	90	2013-01-02 11:00:00	4	2013-01-02 11:00:00

Let’s examine each column we will use for creating the dashboard individually.

order_line_id

%%sql
SELECT * FROM get_column_summary('sales.order_lines', 'order_line_id', True);

	Summary Type	Summary Count
0	Missing	0
1	Unique Count	231412
2	Duplicated	0
3	Total Count	231412
4	Zero	0
5	Negative	0

order_id

%%sql
SELECT * FROM get_column_summary('sales.order_lines', 'order_id', True);

	Summary Type	Summary Count
0	Total Count	231412
1	Missing	0
2	Negative	0
3	Zero	0
4	Duplicated	157817
5	Unique Count	73595

stock_item_id

%%sql
SELECT * FROM get_column_summary('sales.order_lines', 'stock_item_id', True);

	Summary Type	Summary Count
0	Total Count	231412
1	Missing	0
2	Negative	0
3	Zero	0
4	Duplicated	231185
5	Unique Count	227

description

%%sql
SELECT * FROM get_column_summary('sales.order_lines', 'description', True);

	Summary Type	Summary Count
0	Negative	None
1	Zero	None
2	Total Count	231412
3	Missing	0
4	Duplicated	231185
5	Unique Count	227

package_type_id

%%sql
SELECT * FROM get_column_summary('sales.order_lines', 'package_type_id', True);

	Summary Type	Summary Count
0	Total Count	231412
1	Missing	0
2	Negative	0
3	Duplicated	231408
4	Unique Count	4
5	Zero	0

quantity

%%sql
SELECT * FROM get_column_summary('sales.order_lines', 'quantity', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	231412	Max	360	10 (15799)
1	Unique Count	61	75%	60	5 (12876)
2	Zero	0	Mean	40.24	1 (12716)
3	Missing	0	Median	10	8 (12701)
4	Duplicated	231351	25%	5	7 (12681)
5	Negative	0	Min	1	2 (12654)

unit_price

%%sql
SELECT * FROM get_column_summary('sales.order_lines', 'unit_price', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	231412	Max	1899	13.00 (44577)
1	Unique Count	62	75%	32	18.00 (36536)
2	Zero	0	Mean	45.21	32.00 (35575)
3	Missing	0	Median	18	25.00 (13553)
4	Duplicated	231350	25%	13	30.00 (7307)
5	Negative	0	Min	0.66	4.10 (7290)

tax_rate

%%sql
SELECT * FROM get_column_summary('sales.order_lines', 'tax_rate', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	231412	Max	15	15.000 (230376)
1	Duplicated	231410	75%	15	10.000 (1036)
2	Zero	0	Mean	14.98	None
3	Missing	0	Median	15	None
4	Unique Count	2	25%	15	None
5	Negative	0	Min	10	None

picked_quantity

%%sql
SELECT * FROM get_column_summary('sales.order_lines', 'picked_quantity', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	231412	Max	360	10 (15799)
1	Unique Count	62	75%	60	5 (12876)
2	Zero	3147	Mean	38.68	1 (12716)
3	Missing	0	Median	9	8 (12701)
4	Duplicated	231350	25%	5	7 (12681)
5	Negative	0	Min	0	2 (12654)

picking_completed_when

%%sql
SELECT * FROM get_column_summary('sales.order_lines', 'picking_completed_when', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Negative	None	25%	None	2016-05-04 11:00:00 (395)
1	Zero	None	Median	None	2015-01-21 11:00:00 (390)
2	Total Count	231412	Mean	None	2015-11-24 11:00:00 (388)
3	Duplicated	227196	75%	None	2015-06-26 11:00:00 (386)
4	Unique Count	1069	Min	2013-01-01 11:00:00	2016-03-23 11:00:00 (386)
5	Missing	3147	Max	2016-05-31 11:00:00	2015-10-19 11:00:00 (385)

Key Observations:

There are missing values in the picking_completed_when column.
No critical anomalies were found.
The date range matches the orders table.

Table sales.customer_categories#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    sales.customer_categories
LIMIT 5

	customer_category_id	customer_category_name	last_edited_by
0	1	Agent	1
1	2	Wholesaler	1
2	3	Novelty Shop	1
3	4	Supermarket	1
4	5	Computer Store	1

Let’s examine each column we will use for creating the dashboard individually.

customer_category_id

%%sql
SELECT * FROM get_column_summary('sales.customer_categories', 'customer_category_id', True);

	Summary Type	Summary Count
0	Total Count	8
1	Unique Count	8
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

customer_category_name

%%sql
SELECT * FROM get_column_summary('sales.customer_categories', 'customer_category_name', True);

	Summary Type	Summary Count
0	Total Count	8
1	Unique Count	8
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

Key Observations:

There are no missing values in the columns we need.
No critical anomalies were found.

Table sales.customers#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    sales.customers
LIMIT 5

	customer_id	customer_name	bill_to_customer_id	customer_category_id	buying_group_id	primary_contact_person_id	alternate_contact_person_id	delivery_method_id	delivery_city_id	postal_city_id	...	website_url	delivery_address_line_1	delivery_address_line_2	delivery_postal_code	postal_address_line_1	postal_address_line_2	postal_postal_code	last_edited_by
0	1	Tailspin Toys (Head Office)	1	3	1	1001	1002	3	19586	19586	...	http://www.tailspintoys.com	Shop 38	1877 Mittal Road	90410	PO Box 8975	Ribeiroville	90410	1
1	2	Tailspin Toys (Sylvanite, MT)	1	3	1	1003	1004	3	33475	33475	...	http://www.tailspintoys.com/Sylvanite	Shop 245	705 Dita Lane	90216	PO Box 259	Jogiville	90216	1
2	3	Tailspin Toys (Peeples Valley, AZ)	1	3	1	1005	1006	3	26483	26483	...	http://www.tailspintoys.com/PeeplesValley	Unit 217	1970 Khandke Road	90205	PO Box 3648	Lucescuville	90205	1
3	4	Tailspin Toys (Medicine Lodge, KS)	1	3	1	1007	1008	3	21692	21692	...	http://www.tailspintoys.com/MedicineLodge	Suite 164	967 Riutta Boulevard	90152	PO Box 5065	Maciasville	90152	1
4	5	Tailspin Toys (Gasport, NY)	1	3	1	1009	1010	3	12748	12748	...	http://www.tailspintoys.com/Gasport	Unit 176	1674 Skujins Boulevard	90261	PO Box 6294	Kellnerovaville	90261	1

5 rows × 28 columns

Let’s examine each column we will use for creating the dashboard individually.

customer_id

%%sql
SELECT * FROM get_column_summary('sales.customers', 'customer_id', True);

	Summary Type	Summary Count
0	Total Count	663
1	Unique Count	663
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

customer_name

%%sql
SELECT * FROM get_column_summary('sales.customers', 'customer_name', True);

	Summary Type	Summary Count
0	Total Count	663
1	Unique Count	663
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

customer_category_id

%%sql
SELECT * FROM get_column_summary('sales.customers', 'customer_category_id', True);

	Summary Type	Summary Count
0	Total Count	663
1	Unique Count	5
2	Missing	0
3	Duplicated	658
4	Zero	0
5	Negative	0

buying_group_id

%%sql
SELECT * FROM get_column_summary('sales.customers', 'buying_group_id', True);

	Summary Type	Summary Count
0	Total Count	663
1	Unique Count	2
2	Missing	261
3	Duplicated	400
4	Zero	0
5	Negative	0

Let’s look at rows with missing values in buying_group_id.

%%sql
SELECT
    *
FROM
    sales.customers
WHERE
    buying_group_id is NULL
LIMIT 5

	customer_id	customer_name	bill_to_customer_id	customer_category_id	buying_group_id	primary_contact_person_id	alternate_contact_person_id	delivery_method_id	delivery_city_id	postal_city_id	...	website_url	delivery_address_line_1	delivery_address_line_2	delivery_postal_code	postal_address_line_1	postal_address_line_2	postal_postal_code	last_edited_by
0	801	Eric Torres	801	7	None	3001	None	3	31321	31321	...	http://www.microsoft.com/EricTorres/	Unit 26	1772 Allu Street	90218	PO Box 4858	Sandhuville	90218	1
1	802	Cosmina Vlad	802	7	None	3002	None	3	5192	5192	...	http://www.microsoft.com/CosminaVlad/	Suite 9	908 Nadar Lane	90602	PO Box 1954	Gonzalesville	90602	15
2	803	Bala Dixit	803	3	None	3003	None	3	33799	33799	...	http://www.microsoft.com/BalaDixit/	Unit 7	844 Magnusson Lane	90676	PO Box 8565	Blahoville	90676	1
3	804	Aleksandrs Riekstins	804	5	None	3004	None	3	18069	18069	...	http://www.microsoft.com/AleksandrsRiekstins/	Shop 20	498 Bagheri Lane	90797	PO Box 6490	Linnaville	90797	1
4	805	Ratan Poddar	805	3	None	3005	None	3	10194	10194	...	http://www.microsoft.com/RatanPoddar/	Shop 16	1071 Goransson Crescent	90457	PO Box 6237	Shakibaville	90457	1

5 rows × 28 columns

delivery_method_id

%%sql
SELECT * FROM get_column_summary('sales.customers', 'delivery_method_id', True);

	Summary Type	Summary Count
0	Total Count	663
1	Unique Count	1
2	Missing	0
3	Duplicated	662
4	Zero	0
5	Negative	0

delivery_city_id

%%sql
SELECT * FROM get_column_summary('sales.customers', 'delivery_city_id', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	663	Max	38184	16702 (2)
1	Unique Count	655	75%	28468	242 (2)
2	Missing	0	Mean	19033.07	26010 (2)
3	Duplicated	8	Median	19232	29320 (2)
4	Zero	0	25%	9369.5	31685 (2)
5	Negative	0	Min	15	33832 (2)

Key Observations:

There are missing values in the buying_group_id column. Apparently, these are customers without a group.
No critical anomalies were found.

Table sales.invoices#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    sales.invoices
LIMIT 5

	invoice_id	customer_id	bill_to_customer_id	order_id	delivery_method_id	contact_person_id	accounts_person_id	salesperson_person_id	packed_by_person_id	invoice_date	...	internal_comments	total_dry_items	returned_delivery_data	confirmed_delivery_time	confirmed_received_by	last_edited_by	last_edited_when
0	1	832	832	1	3	3032	3032	2	14	2013-01-01	...	None	1	{"Events": [{ "Event":"Ready for collection","...	2013-01-02 07:05:00	Aakriti Byrraju	15	2013-01-02 07:00:00
1	2	803	803	2	3	3003	3003	8	14	2013-01-01	...	None	2	{"Events": [{ "Event":"Ready for collection","...	2013-01-02 07:10:00	Bala Dixit	15	2013-01-02 07:00:00
2	3	105	1	3	3	1209	1001	7	14	2013-01-01	...	None	1	{"Events": [{ "Event":"Ready for collection","...	2013-01-02 07:15:00	Sung-Hwan Hwang	15	2013-01-02 07:00:00
3	4	57	1	4	3	1113	1001	16	14	2013-01-01	...	None	3	{"Events": [{ "Event":"Ready for collection","...	2013-01-02 07:20:00	Aile Mae	15	2013-01-02 07:00:00
4	5	905	905	5	3	3105	3105	3	14	2013-01-01	...	None	3	{"Events": [{ "Event":"Ready for collection","...	2013-01-02 07:25:00	Sara Huiting	15	2013-01-02 07:00:00

5 rows × 25 columns

Let’s examine each column we will use for creating the dashboard individually.

invoice_id

%%sql
SELECT * FROM get_column_summary('sales.invoices', 'invoice_id', True);

	Summary Type	Summary Count
0	Missing	0
1	Unique Count	70510
2	Zero	0
3	Negative	0
4	Duplicated	0
5	Total Count	70510

customer_id

%%sql
SELECT * FROM get_column_summary('sales.invoices', 'customer_id', True);

	Summary Type	Summary Count
0	Total Count	70510
1	Missing	0
2	Negative	0
3	Unique Count	663
4	Duplicated	69847
5	Zero	0

order_id

%%sql
SELECT * FROM get_column_summary('sales.invoices', 'order_id', True);

	Summary Type	Summary Count
0	Total Count	70510
1	Missing	0
2	Negative	0
3	Zero	0
4	Duplicated	0
5	Unique Count	70510

delivery_method_id

%%sql
SELECT * FROM get_column_summary('sales.invoices', 'delivery_method_id', True);

	Summary Type	Summary Count
0	Total Count	70510
1	Missing	0
2	Negative	0
3	Duplicated	70509
4	Unique Count	1
5	Zero	0

invoice_date

%%sql
SELECT * FROM get_column_summary('sales.invoices', 'invoice_date', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Negative	None	25%	None	2016-01-06 (117)
1	Duplicated	69441	Median	None	2016-04-18 (117)
2	Total Count	70510	Mean	None	2015-07-06 (116)
3	Zero	None	75%	None	2016-02-24 (116)
4	Unique Count	1069	Min	2013-01-01	2016-02-26 (116)
5	Missing	0	Max	2016-05-31	2016-05-04 (116)

total_dry_items

%%sql
SELECT * FROM get_column_summary('sales.invoices', 'total_dry_items', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	70510	Max	5	3 (17179)
1	Unique Count	6	75%	4	2 (17024)
2	Zero	16	Mean	3.22	4 (16883)
3	Missing	0	Median	3	5 (13676)
4	Duplicated	70504	25%	2	1 (5732)
5	Negative	0	Min	0	0 (16)

total_chiller_items

%%sql
SELECT * FROM get_column_summary('sales.invoices', 'total_chiller_items', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	70510	Max	3	0 (69519)
1	Unique Count	4	75%	0	1 (948)
2	Zero	69519	Mean	0.01	2 (41)
3	Duplicated	70506	Median	0	3 (2)
4	Negative	0	25%	0	None
5	Missing	0	Min	0	None

Key Observations:

There are no missing values in the columns we need.
No critical anomalies were found.
The date range matches the orders table.

Table sales.invoice_lines#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    sales.invoice_lines
LIMIT 5

	invoice_line_id	invoice_id	stock_item_id	description	package_type_id	quantity	unit_price	tax_rate	tax_amount	line_profit	extended_price	last_edited_by	last_edited_when
0	1	1	67	Ride on toy sedan car (Black) 1/12 scale	7	10	230.00	15.000	345.00	850.00	2645.00	7	2013-01-01 12:00:00
1	2	2	50	Developer joke mug - old C developers never di...	7	9	13.00	15.000	17.55	76.50	134.55	7	2013-01-01 12:00:00
2	3	2	10	USB food flash drive - chocolate bar	7	9	32.00	15.000	43.20	180.00	331.20	7	2013-01-01 12:00:00
3	4	3	114	Superhero action jacket (Blue) XXL	7	3	30.00	15.000	13.50	24.00	103.50	7	2013-01-01 12:00:00
4	5	4	206	Permanent marker black 5mm nib (Black) 5mm	7	96	2.70	15.000	38.88	96.00	298.08	7	2013-01-01 12:00:00

Let’s examine each column we will use for creating the dashboard individually.

invoice_line_id

%%sql
SELECT * FROM get_column_summary('sales.invoice_lines', 'invoice_line_id', True);

	Summary Type	Summary Count
0	Missing	0
1	Unique Count	228265
2	Duplicated	0
3	Total Count	228265
4	Zero	0
5	Negative	0

invoice_id

%%sql
SELECT * FROM get_column_summary('sales.invoice_lines', 'invoice_id', True);

	Summary Type	Summary Count
0	Total Count	228265
1	Missing	0
2	Negative	0
3	Zero	0
4	Duplicated	157755
5	Unique Count	70510

stock_item_id

%%sql
SELECT * FROM get_column_summary('sales.invoice_lines', 'stock_item_id', True);

	Summary Type	Summary Count
0	Total Count	228265
1	Missing	0
2	Negative	0
3	Zero	0
4	Duplicated	228038
5	Unique Count	227

description

%%sql
SELECT * FROM get_column_summary('sales.invoice_lines', 'description', True);

	Summary Type	Summary Count
0	Negative	None
1	Zero	None
2	Total Count	228265
3	Missing	0
4	Unique Count	227
5	Duplicated	228038

package_type_id

%%sql
SELECT * FROM get_column_summary('sales.invoice_lines', 'package_type_id', True);

	Summary Type	Summary Count
0	Total Count	228265
1	Missing	0
2	Negative	0
3	Duplicated	228261
4	Unique Count	4
5	Zero	0

quantity

%%sql
SELECT * FROM get_column_summary('sales.invoice_lines', 'quantity', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	228265	Max	360	10 (15799)
1	Unique Count	61	75%	60	5 (12876)
2	Zero	0	Mean	39.21	1 (12716)
3	Missing	0	Median	10	8 (12701)
4	Duplicated	228204	25%	5	7 (12681)
5	Negative	0	Min	1	2 (12654)

unit_price

%%sql
SELECT * FROM get_column_summary('sales.invoice_lines', 'unit_price', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	228265	Max	1899	13.00 (44577)
1	Duplicated	228203	75%	32	32.00 (35177)
2	Zero	0	Mean	45.59	18.00 (34326)
3	Missing	0	Median	18	25.00 (13553)
4	Unique Count	62	25%	13	30.00 (7307)
5	Negative	0	Min	0.66	4.10 (7290)

tax_rate

%%sql
SELECT * FROM get_column_summary('sales.invoice_lines', 'tax_rate', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	228265	Max	15	15.000 (227229)
1	Duplicated	228263	75%	15	10.000 (1036)
2	Zero	0	Mean	14.98	None
3	Missing	0	Median	15	None
4	Unique Count	2	25%	15	None
5	Negative	0	Min	10	None

tax_amount

%%sql
SELECT * FROM get_column_summary('sales.invoice_lines', 'tax_amount', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	228265	Max	2848.5	13.65 (4613)
1	Duplicated	227772	75%	129.6	1.95 (4580)
2	Negative	0	Mean	112.95	5.85 (4514)
3	Missing	0	Median	34.5	3.90 (4505)
4	Unique Count	493	25%	14.4	17.55 (4469)
5	Zero	0	Min	0.38	15.60 (4451)

line_profit

%%sql
SELECT * FROM get_column_summary('sales.invoice_lines', 'line_profit', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	228265	Max	9200	85.00 (5056)
1	Unique Count	570	75%	390	68.00 (4662)
2	Negative	4626	Mean	375.57	59.50 (4613)
3	Duplicated	227695	Median	120	25.50 (4610)
4	Zero	0	25%	51	17.00 (4598)
5	Missing	0	Min	-645	8.50 (4580)

extended_price

%%sql
SELECT * FROM get_column_summary('sales.invoice_lines', 'extended_price', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	228265	Max	21838.5	104.65 (4613)
1	Duplicated	227768	75%	993.6	14.95 (4580)
2	Zero	0	Mean	867.6	44.85 (4514)
3	Unique Count	497	Median	264.5	29.90 (4505)
4	Negative	0	25%	110.4	134.55 (4469)
5	Missing	0	Min	2.88	119.60 (4451)

Key Observations:

There are no missing values in the columns we need.
No critical anomalies were found.

Table sales.customer_transactions#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    sales.customer_transactions
LIMIT 5

	customer_transaction_id	customer_id	transaction_type_id	invoice_id	payment_method_id	transaction_date	amount_excluding_tax	tax_amount	transaction_amount	finalization_date	is_finalized	last_edited_by	last_edited_when
0	5	803	1	2	None	2013-01-01	405.00	60.75	465.75	2013-01-02	True	10	2013-01-02 11:30:00
1	7	1	1	3	None	2013-01-01	90.00	13.50	103.50	2013-01-02	True	10	2013-01-02 11:30:00
2	11	1	1	4	None	2013-01-01	445.20	66.78	511.98	2013-01-02	True	10	2013-01-02 11:30:00
3	15	905	1	5	None	2013-01-01	704.00	105.60	809.60	2013-01-02	True	10	2013-01-02 11:30:00
4	19	976	1	6	None	2013-01-01	430.00	64.50	494.50	2013-01-02	True	10	2013-01-02 11:30:00

Let’s examine each column we will use for creating the dashboard individually.

customer_transaction_id

%%sql
SELECT * FROM get_column_summary('sales.customer_transactions', 'customer_transaction_id', True);

	Summary Type	Summary Count
0	Missing	0
1	Total Count	97147
2	Duplicated	0
3	Zero	0
4	Unique Count	97147
5	Negative	0

customer_id

%%sql
SELECT * FROM get_column_summary('sales.customer_transactions', 'customer_id', True);

	Summary Type	Summary Count
0	Missing	0
1	Total Count	97147
2	Negative	0
3	Unique Count	263
4	Duplicated	96884
5	Zero	0

transaction_type_id

%%sql
SELECT * FROM get_column_summary('sales.customer_transactions', 'transaction_type_id', True);

	Summary Type	Summary Count
0	Missing	0
1	Total Count	97147
2	Negative	0
3	Zero	0
4	Unique Count	2
5	Duplicated	97145

invoice_id

%%sql
SELECT * FROM get_column_summary('sales.customer_transactions', 'invoice_id', True);

	Summary Type	Summary Count
0	Missing	26637
1	Total Count	97147
2	Negative	0
3	Zero	0
4	Duplicated	0
5	Unique Count	70510

payment_method_id

%%sql
SELECT * FROM get_column_summary('sales.customer_transactions', 'payment_method_id', True);

	Summary Type	Summary Count
0	Missing	70510
1	Total Count	97147
2	Negative	0
3	Duplicated	26636
4	Unique Count	1
5	Zero	0

transaction_date

%%sql
SELECT * FROM get_column_summary('sales.customer_transactions', 'transaction_date', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Negative	None	25%	None	2016-01-07 (164)
1	Duplicated	95900	Median	None	2015-11-24 (159)
2	Total Count	97147	Mean	None	2015-07-07 (157)
3	Zero	None	75%	None	2016-03-22 (155)
4	Unique Count	1247	Min	2013-01-01	2016-01-06 (154)
5	Missing	0	Max	2016-05-31	2015-07-23 (151)

Key Observations:

Many missing values in the invoice_id column. This is normal, as not all transactions have an invoice_id. This is a system feature.
Very many missing values in payment_method_id. And only one unique value. This is normal, as transactions are not always related to payments.
The date range matches the orders table.

Application Schema#

Table application.countries#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    application.countries
LIMIT 5

	country_id	country_name	formal_name	iso_alpha_3_code	iso_numeric_code	country_type	latest_recorded_population	continent	region	subregion	last_edited_by
0	1	Afghanistan	Islamic State of Afghanistan	AFG	4	UN Member State	28400000	Asia	Asia	Southern Asia	1
1	3	Albania	Republic of Albania	ALB	8	UN Member State	3785031	Europe	Europe	Southern Europe	20
2	4	Algeria	People's Democratic Republic of Algeria	DZA	12	UN Member State	34178188	Africa	Africa	Northern Africa	1
3	6	Andorra	Principality of Andorra	AND	20	UN Member State	87243	Europe	Europe	Southern Europe	15
4	7	Angola	People's Republic of Angola	AGO	24	UN Member State	12799293	Africa	Africa	Middle Africa	1

Let’s examine each column we will use for creating the dashboard individually.

country_id

%%sql
SELECT * FROM get_column_summary('application.countries', 'country_id', True);

	Summary Type	Summary Count
0	Total Count	190
1	Unique Count	190
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

country_name

%%sql
SELECT * FROM get_column_summary('application.countries', 'country_name', True);

	Summary Type	Summary Count
0	Total Count	190
1	Unique Count	190
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

iso_alpha_3_code

%%sql
SELECT * FROM get_column_summary('application.countries', 'iso_alpha_3_code', True);

	Summary Type	Summary Count
0	Total Count	190
1	Unique Count	190
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

Key Observations:

No missing values in the columns we need.
No critical anomalies were found.

Table application.state_provinces#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    application.state_provinces
LIMIT 5

	state_province_id	state_province_code	state_province_name	country_id	sales_territory	latest_recorded_population	last_edited_by
0	1	AL	Alabama	230	Southeast	5437278	15
1	2	AK	Alaska	230	Far West	735132	1
2	3	AZ	Arizona	230	Southwest	6891688	8
3	4	AR	Arkansas	230	Southeast	3077747	8
4	5	CA	California	230	Far West	41460453	15

Let’s examine each column we will use for creating the dashboard individually.

state_province_id

%%sql
SELECT * FROM get_column_summary('application.state_provinces', 'state_province_id', True);

	Summary Type	Summary Count
0	Total Count	53
1	Unique Count	53
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

state_province_code

%%sql
SELECT * FROM get_column_summary('application.state_provinces', 'state_province_code', True);

	Summary Type	Summary Count
0	Total Count	53
1	Unique Count	53
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

state_province_name

%%sql
SELECT * FROM get_column_summary('application.state_provinces', 'state_province_name', True);

	Summary Type	Summary Count
0	Total Count	53
1	Unique Count	53
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

country_id

%%sql
SELECT * FROM get_column_summary('application.state_provinces', 'country_id', True);

	Summary Type	Summary Count
0	Total Count	53
1	Unique Count	1
2	Missing	0
3	Duplicated	52
4	Zero	0
5	Negative	0

sales_territory

%%sql
SELECT * FROM get_column_summary('application.state_provinces', 'sales_territory', True);

	Summary Type	Summary Count
0	Total Count	53
1	Unique Count	9
2	Missing	0
3	Duplicated	44
4	Zero	None
5	Negative	None

latest_recorded_population

%%sql
SELECT * FROM get_column_summary('application.state_provinces', 'latest_recorded_population', True);

	Summary Type	Summary Count
0	Total Count	53
1	Unique Count	53
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

Key Observations:

No missing values in the columns we need.
No critical anomalies were found.
All states in the application.state_provinces table are from the USA.

Table application.cities#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    application.cities
LIMIT 5

	city_id	city_name	state_province_id	latest_recorded_population	last_edited_by
0	1	Aaronsburg	39	613	1
1	3	Abanda	1	192	1
2	4	Abbeville	42	5237	1
3	5	Abbeville	11	2908	1
4	6	Abbeville	1	2688	1

Let’s examine each column we will use for creating the dashboard individually.

city_id

%%sql
SELECT * FROM get_column_summary('application.cities', 'city_id', True);

	Summary Type	Summary Count
0	Missing	0
1	Total Count	37940
2	Duplicated	0
3	Negative	0
4	Unique Count	37940
5	Zero	0

city_name

%%sql
SELECT * FROM get_column_summary('application.cities', 'city_name', True);

	Summary Type	Summary Count
0	Negative	None
1	Zero	None
2	Missing	0
3	Total Count	37940
4	Unique Count	23279
5	Duplicated	14661

state_province_id

%%sql
SELECT * FROM get_column_summary('application.cities', 'state_province_id', True);

	Summary Type	Summary Count
0	Missing	0
1	Total Count	37940
2	Negative	0
3	Zero	0
4	Unique Count	53
5	Duplicated	37887

latest_recorded_population

%%sql
SELECT * FROM get_column_summary('application.cities', 'latest_recorded_population', True);

	Summary Type	Summary Count
0	Missing	11048
1	Total Count	37940
2	Negative	0
3	Zero	14
4	Duplicated	17568
5	Unique Count	9324

Key Observations:

Not all cities have population values.
No critical anomalies were found.
The date range matches the orders table.

Table application.delivery_methods#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    application.delivery_methods
LIMIT 5

	delivery_method_id	delivery_method_name	last_edited_by
0	1	Post	1
1	2	Courier	1
2	3	Delivery Van	1
3	4	Customer Collect	1
4	5	Chilled Van	16

Let’s examine each column we will use for creating the dashboard individually.

delivery_method_id

%%sql
SELECT * FROM get_column_summary('application.delivery_methods', 'delivery_method_id', True);

	Summary Type	Summary Count
0	Total Count	10
1	Unique Count	10
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

delivery_method_name

%%sql
SELECT * FROM get_column_summary('application.delivery_methods', 'delivery_method_name', True);

	Summary Type	Summary Count
0	Total Count	10
1	Unique Count	10
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

Key Observations:

No missing values in the columns we need.
No critical anomalies were found.

Table application.payment_methods#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    application.payment_methods
LIMIT 5

	payment_method_id	payment_method_name	last_edited_by
0	1	Cash	1
1	2	Check	1
2	3	Credit-Card	9
3	4	EFT	1

Let’s examine each column we will use for creating the dashboard individually.

payment_method_id

%%sql
SELECT * FROM get_column_summary('application.payment_methods', 'payment_method_id', True);

	Summary Type	Summary Count
0	Total Count	4
1	Unique Count	4
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

payment_method_name

%%sql
SELECT * FROM get_column_summary('application.payment_methods', 'payment_method_name', True);

	Summary Type	Summary Count
0	Total Count	4
1	Unique Count	4
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

Key Observations:

No missing values in the columns we need.
No critical anomalies were found.

Table application.transaction_types#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    application.transaction_types
LIMIT 5

	transaction_type_id	transaction_type_name	last_edited_by
0	1	Customer Invoice	1
1	2	Customer Credit Note	1
2	3	Customer Payment Received	1
3	4	Customer Refund	1
4	5	Supplier Invoice	1

Let’s examine each column we will use for creating the dashboard individually.

transaction_type_id

%%sql
SELECT * FROM get_column_summary('application.transaction_types', 'transaction_type_id', True);

	Summary Type	Summary Count
0	Total Count	13
1	Unique Count	13
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

transaction_type_name

%%sql
SELECT * FROM get_column_summary('application.transaction_types', 'transaction_type_name', True);

	Summary Type	Summary Count
0	Total Count	13
1	Unique Count	13
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

Key Observations:

No missing values in the columns we need.
No critical anomalies were found.

Warehouse Schema#

Table warehouse.stock_items#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    warehouse.stock_items
LIMIT 5

	stock_item_id	stock_item_name	supplier_id	color_id	unit_package_id	outer_package_id	brand	size	lead_time_days	quantity_per_outer	...	unit_price	recommended_retail_price	typical_weight_per_unit	marketing_comments	internal_comments	photo	custom_fields	tags	search_details	last_edited_by
0	1	USB missile launcher (Green)	12	NaN	7	7	None	None	14	1	...	25.00	37.38	0.300	Complete with 12 projectiles	None	None	{ "CountryOfManufacture": "China", "Tags": ["U...	["USB Powered"]	USB missile launcher (Green) Complete with 12 ...	1
1	2	USB rocket launcher (Gray)	12	12.0	7	7	None	None	14	1	...	25.00	37.38	0.300	Complete with 12 projectiles	None	None	{ "CountryOfManufacture": "China", "Tags": ["U...	["USB Powered"]	USB rocket launcher (Gray) Complete with 12 pr...	1
2	3	Office cube periscope (Black)	12	3.0	7	6	None	None	14	10	...	18.50	27.66	0.250	Need to see over your cubicle wall? This is ju...	None	None	{ "CountryOfManufacture": "China", "Tags": [] }	[]	Office cube periscope (Black) Need to see over...	1
3	4	USB food flash drive - sushi roll	12	NaN	7	7	None	None	14	1	...	32.00	47.84	0.050	None	None	None	{ "CountryOfManufacture": "Japan", "Tags": ["3...	["32GB","USB Powered"]	USB food flash drive - sushi roll	1
4	5	USB food flash drive - hamburger	12	NaN	7	7	None	None	14	1	...	32.00	47.84	0.050	None	None	None	{ "CountryOfManufacture": "Japan", "Tags": ["1...	["16GB","USB Powered"]	USB food flash drive - hamburger	1

5 rows × 23 columns

Let’s examine each column we will use for creating the dashboard individually.

stock_item_id

%%sql
SELECT * FROM get_column_summary('warehouse.stock_items', 'stock_item_id', True);

	Summary Type	Summary Count
0	Total Count	227
1	Unique Count	227
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

stock_item_name

%%sql
SELECT * FROM get_column_summary('warehouse.stock_items', 'stock_item_name', True);

	Summary Type	Summary Count
0	Total Count	227
1	Unique Count	227
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

color_id

%%sql
SELECT * FROM get_column_summary('warehouse.stock_items', 'color_id', True);

	Summary Type	Summary Count
0	Total Count	227
1	Unique Count	7
2	Missing	99
3	Duplicated	121
4	Zero	0
5	Negative	0

unit_package_id

%%sql
SELECT * FROM get_column_summary('warehouse.stock_items', 'unit_package_id', True);

	Summary Type	Summary Count
0	Total Count	227
1	Unique Count	4
2	Missing	0
3	Duplicated	223
4	Zero	0
5	Negative	0

outer_package_id

%%sql
SELECT * FROM get_column_summary('warehouse.stock_items', 'outer_package_id', True);

	Summary Type	Summary Count
0	Total Count	227
1	Unique Count	3
2	Missing	0
3	Duplicated	224
4	Zero	0
5	Negative	0

brand

%%sql
SELECT * FROM get_column_summary('warehouse.stock_items', 'brand', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	227	Max	Northwind	Northwind (18)
1	Unique Count	1	75%	None	None
2	Missing	209	Mean	None	None
3	Duplicated	17	Median	None	None
4	Zero	None	25%	None	None
5	Negative	None	Min	Northwind	None

size

%%sql
SELECT * FROM get_column_summary('warehouse.stock_items', 'size', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	227	Max	XXS	XL (12)
1	Unique Count	43	75%	None	L (11)
2	Missing	64	Mean	None	M (11)
3	Duplicated	120	Median	None	S (11)
4	Zero	None	25%	None	1/12 scale (9)
5	Negative	None	Min	1.5m	1/50 scale (9)

tax_rate

%%sql
SELECT * FROM get_column_summary('warehouse.stock_items', 'tax_rate', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	227	Max	15	15.000 (219)
1	Unique Count	2	75%	15	10.000 (8)
2	Missing	0	Mean	14.82	None
3	Duplicated	225	Median	15	None
4	Zero	0	25%	15	None
5	Negative	0	Min	10	None

unit_price

%%sql
SELECT * FROM get_column_summary('warehouse.stock_items', 'unit_price', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	227	Max	1899	13.00 (42)
1	Unique Count	57	75%	32	18.00 (35)
2	Missing	0	Mean	44.16	32.00 (34)
3	Duplicated	170	Median	18	25.00 (13)
4	Zero	0	25%	13	30.00 (7)
5	Negative	0	Min	0.66	4.10 (7)

typical_weight_per_unit

%%sql
SELECT * FROM get_column_summary('warehouse.stock_items', 'typical_weight_per_unit', False);

	Summary Type	Summary Count	Stats Type	Stats Value	Top Values
0	Total Count	227	Max	21	0.150 (42)
1	Unique Count	23	75%	0.7	0.400 (28)
2	Missing	0	Mean	1.83	0.350 (25)
3	Duplicated	204	Median	0.35	0.300 (21)
4	Zero	0	25%	0.15	0.250 (18)
5	Negative	0	Min	0.05	0.500 (13)

Key Observations:

Not all items have a brand, color, or size.
No critical anomalies were found.

Table warehouse.stock_item_stock_groups#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    warehouse.stock_item_stock_groups
LIMIT 5

	stock_item_stock_group_id	stock_item_id	stock_group_id	last_edited_by	last_edited_when
0	1	1	6	1	2013-01-01
1	2	1	1	1	2013-01-01
2	3	1	7	1	2013-01-01
3	4	2	6	1	2013-01-01
4	5	2	1	1	2013-01-01

Let’s examine each column we will use for creating the dashboard individually.

stock_item_stock_group_id

%%sql
SELECT * FROM get_column_summary('warehouse.stock_item_stock_groups', 'stock_item_stock_group_id', True);

	Summary Type	Summary Count
0	Total Count	442
1	Unique Count	442
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

stock_item_id

%%sql
SELECT * FROM get_column_summary('warehouse.stock_item_stock_groups', 'stock_item_id', True);

	Summary Type	Summary Count
0	Total Count	442
1	Unique Count	227
2	Missing	0
3	Duplicated	215
4	Zero	0
5	Negative	0

stock_group_id

%%sql
SELECT * FROM get_column_summary('warehouse.stock_item_stock_groups', 'stock_group_id', True);

	Summary Type	Summary Count
0	Total Count	442
1	Unique Count	9
2	Missing	0
3	Duplicated	433
4	Zero	0
5	Negative	0

Key Observations:

No missing values in the columns we need.
No critical anomalies were found.

Table warehouse.stock_groups#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    warehouse.stock_groups
LIMIT 5

	stock_group_id	stock_group_name	last_edited_by
0	1	Novelty Items	1
1	2	Clothing	1
2	3	Mugs	1
3	4	T-Shirts	1
4	5	Airline Novelties	1

Let’s examine each column we will use for creating the dashboard individually.

stock_group_id

%%sql
SELECT * FROM get_column_summary('warehouse.stock_groups', 'stock_group_id', True);

	Summary Type	Summary Count
0	Total Count	10
1	Unique Count	10
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

stock_group_name

%%sql
SELECT * FROM get_column_summary('warehouse.stock_groups', 'stock_group_name', True);

	Summary Type	Summary Count
0	Total Count	10
1	Unique Count	10
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

Key Observations:

No missing values in the columns we need.
No critical anomalies were found.

Table warehouse.package_types#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    warehouse.package_types
LIMIT 5

	package_type_id	package_type_name	last_edited_by
0	1	Bag	1
1	2	Block	1
2	3	Bottle	1
3	4	Box	1
4	5	Can	1

Let’s examine each column we will use for creating the dashboard individually.

package_type_id

%%sql
SELECT * FROM get_column_summary('warehouse.package_types', 'package_type_id', True);

	Summary Type	Summary Count
0	Total Count	14
1	Unique Count	14
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

package_type_name

%%sql
SELECT * FROM get_column_summary('warehouse.package_types', 'package_type_name', True);

	Summary Type	Summary Count
0	Total Count	14
1	Unique Count	14
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

Key Observations:

No missing values in the columns we need.
No critical anomalies were found.

Table warehouse.colors#

Let’s look at the rows.

%%sql
SELECT
    *
FROM
    warehouse.colors
LIMIT 5

	color_id	color_name	last_edited_by
0	1	Azure	1
1	2	Beige	1
2	3	Black	1
3	4	Blue	1
4	5	Charcoal	1

Let’s examine each column we will use for creating the dashboard individually.

color_id

%%sql
SELECT * FROM get_column_summary('warehouse.colors', 'color_id', True);

	Summary Type	Summary Count
0	Total Count	36
1	Unique Count	36
2	Missing	0
3	Duplicated	0
4	Zero	0
5	Negative	0

color_name

%%sql
SELECT * FROM get_column_summary('warehouse.colors', 'color_name', True);

	Summary Type	Summary Count
0	Total Count	36
1	Unique Count	36
2	Missing	0
3	Duplicated	0
4	Zero	None
5	Negative	None

Key Observations:

No missing values in the columns we need.
No critical anomalies were found.

Exploring Relationships Between Tables#

Let’s examine the relationships between tables for further joins.

Let’s check if there are any key mismatches.

Sales Schema#

sales.orders and sales.order_lines

%%sql
Select * from analyze_relationship('sales.orders', 'sales.order_lines', 'order_id', 'order_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:N	0	0	73595	231412	73595

sales.orders and sales.customers

%%sql
Select * from analyze_relationship('sales.orders', 'sales.customers', 'customer_id', 'customer_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	N:1	0	0	73595	663	663

sales.orders and sales.invoiced

%%sql
Select * from analyze_relationship('sales.orders', 'sales.invoices', 'order_id', 'order_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:1	3085	0	73595	70510	70510

sales.customers and sales.customer_categories

%%sql
Select * from analyze_relationship('sales.customers', 'sales.customer_categories', 'customer_category_id', 'customer_category_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	N:1	0	3	663	8	5

sales.invoiced and sales.invoice_lines

%%sql
Select * from analyze_relationship('sales.invoices', 'sales.invoice_lines', 'invoice_id', 'invoice_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:N	0	0	70510	228265	70510

sales.customers and sales.customer_transactions

%%sql
Select * from analyze_relationship('sales.customers', 'sales.customer_transactions', 'customer_id', 'customer_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:N	400	0	663	97147	263

sales.customers and sales.invoiced

%%sql
Select * from analyze_relationship('sales.customers', 'sales.invoices', 'customer_id', 'customer_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:N	0	0	663	70510	663

sales.invoiced and sales.customer_transactions

%%sql
Select * from analyze_relationship('sales.invoices', 'sales.customer_transactions', 'invoice_id', 'invoice_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:1	0	0	70510	97147	70510

Key Observations:

The sales.orders table contains order_id values that are not present in sales.invoices. This is normal, as not all orders have invoices.
The sales.customer_categories table contains customer_id values that are not present in the sales.customers table. This is also normal.
The sales.customers table contains customer_id values that are not present in the sales.customer_transactions table. This is also normal, as not all customers have transactions.
No critical anomalies were found.

Application Schema#

application.country and application.state_provinces

%%sql
Select * from analyze_relationship('application.countries', 'application.state_provinces', 'country_id', 'country_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:N	189	0	190	53	1

application.state_provinces and application.cities

%%sql
Select * from analyze_relationship('application.state_provinces', 'application.cities', 'state_province_id', 'state_province_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:N	0	0	53	37940	53

application.delivery_methods and sales.customers

%%sql
Select * from analyze_relationship('application.delivery_methods', 'sales.customers', 'delivery_method_id', 'delivery_method_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:N	9	0	10	663	1

application.payment_methods and sales.customer_transactions

%%sql
Select * from analyze_relationship('application.payment_methods', 'sales.customer_transactions', 'payment_method_id', 'payment_method_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:N	3	0	4	97147	1

application.transaction_types and sales.customer_transactions

%%sql
Select * from analyze_relationship('application.transaction_types', 'sales.customer_transactions', 'transaction_type_id', 'transaction_type_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:N	11	0	13	97147	2

Key Observations:

The application.countries table contains country_id values that are not present in application.state_provinces. This is normal, as not all countries are represented in state_provinces.
The application.delivery_methods table contains delivery_method_id values that are not present in the sales.customers table. This is also normal, as not all delivery methods may have been used.
The application.payment_methods table contains payment_method_id values that are not present in the sales.customer_transactions table. This is also normal, as not all payment methods may have been used.
The application.transaction_types table contains transaction_type_id values that are not present in the sales.customer_transactions table. This is also normal, as not all transaction types may have been used.
No critical anomalies were found.

Warehouse Schema#

warehouse.stock_items and warehouse.stock_item_stock_groups

%%sql
Select * from analyze_relationship('warehouse.stock_items', 'warehouse.stock_item_stock_groups', 'stock_item_id', 'stock_item_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:N	0	0	227	442	227

warehouse.stock_groups and warehouse.stock_item_stock_groups

%%sql
Select * from analyze_relationship('warehouse.stock_groups', 'warehouse.stock_item_stock_groups', 'stock_group_id', 'stock_group_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	1:N	1	0	10	442	9

warehouse.stock_items and warehouse.colors

%%sql
Select * from analyze_relationship('warehouse.stock_items', 'warehouse.colors', 'color_id', 'color_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	N:1	0	29	227	36	7

warehouse.stock_items and warehouse.package_types (unit_package_id)

%%sql
Select * from analyze_relationship('warehouse.stock_items', 'warehouse.package_types', 'unit_package_id', 'package_type_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	N:1	0	10	227	14	4

warehouse.stock_items and warehouse.package_types (outer_package_id)

%%sql
Select * from analyze_relationship('warehouse.stock_items', 'warehouse.package_types', 'outer_package_id', 'package_type_id')

	relationship_type	left_only_keys	right_only_keys	left_size	right_size	common_keys
0	N:1	0	11	227	14	3

Key Observations:

The warehouse.stock_groups table contains stock_group_id values that are not present in warehouse.stock_item_stock_groups. This is normal, as not all stock groups may be represented.
The warehouse.colors table contains color_id values that are not present in the warehouse.stock_items table. This is also normal, as not all colors may be used.
The warehouse.package_types table contains package_type_id values that are not present in the warehouse.stock_items table. This is also normal, as not all package types may be used.
No critical anomalies were found.

Data Description and Exploration

On this page

Data Description and Exploration#
