Designing the Analytical Database

Database Schema Selection

Let’s create an analytical database wwi_analytics for the dashboard.

To do this, we will transform the OLTP (current structure) to OLAP.

We will use a star schema as it is optimally suited for analytical databases.

Let’s switch to the analytical database.

con('dst')

Connected to dst

Let’s create a new schema where we will create the tables.

%%sql
CREATE SCHEMA analytics;

Install the dblink extension for communication between databases.

%%sql
CREATE EXTENSION IF NOT EXISTS dblink;

Form the connection string for dblink.

dblink_conn_str = f"""
    host={src_db_config['host']}
    dbname={src_db_config['db']}
    user={src_db_config['user']}
    password={src_db_config['pwd']}
    port={src_db_config['port']}
"""

Dimension Tables

Customers

Create a dimension table for customers.

with wwi_analytics_engine.connect() as conn:
    stmt = text(f"""
        CREATE TABLE analytics.dim_customers AS
        SELECT * FROM dblink(
            '{dblink_conn_str}'
            , 'SELECT
                c.customer_id
                , c.customer_name
                , cc.customer_category_name
                , ci.city_name
                , sp.state_province_name
                , CURRENT_DATE AS valid_from
                , NULL::DATE AS valid_to
                , TRUE AS current_record
            FROM
                sales.customers c
                LEFT JOIN sales.customer_categories cc ON c.customer_category_id = cc.customer_category_id
                LEFT JOIN application.cities ci ON c.delivery_city_id = ci.city_id
                LEFT JOIN application.state_provinces sp ON ci.state_province_id = sp.state_province_id'
        ) AS t(
            customer_id INT
            , customer_name TEXT
            , customer_category_name TEXT
            , city_name TEXT
            , state_province_name TEXT
            , valid_from DATE
            , valid_to DATE
            , current_record BOOLEAN
        );

        ALTER TABLE analytics.dim_customers ADD PRIMARY KEY (customer_id);
    """)
    conn.execute(stmt)
    conn.commit()

Products

Create a dimension table for products.

with wwi_analytics_engine.connect() as conn:
    stmt = text(f"""
        CREATE TABLE analytics.dim_products AS
        SELECT * FROM dblink(
            '{dblink_conn_str}'
            , 'WITH stock_groups_agg AS (
                SELECT
                    sisg.stock_item_id
                    , STRING_AGG(sg.stock_group_name, '', '') AS stock_group_names
                FROM
                    warehouse.stock_item_stock_groups sisg
                    LEFT JOIN warehouse.stock_groups sg ON sisg.stock_group_id  = sg.stock_group_id
                GROUP BY
                    sisg.stock_item_id
            )
            SELECT
                si.stock_item_id
                , si.stock_item_name
                , sg.stock_group_names
                , c.color_name
                , ptu.package_type_name AS unit_package_type_name
                , pto.package_type_name AS outer_package_type_name
                , si.brand
                , si.size
                , CURRENT_DATE AS valid_from
                , NULL::DATE AS valid_to
                , TRUE AS current_record
            FROM
                warehouse.stock_items si
                LEFT JOIN stock_groups_agg sg ON si.stock_item_id = sg.stock_item_id
                LEFT JOIN warehouse.package_types ptu ON si.unit_package_id = ptu.package_type_id
                LEFT JOIN warehouse.package_types pto ON si.outer_package_id = pto.package_type_id
                LEFT JOIN warehouse.colors c ON c.color_id = si.color_id'
        ) AS t(
            stock_item_id INT
            , stock_item_name TEXT
            , stock_group_names TEXT
            , color_name TEXT
            , unit_package_type_name TEXT
            , outer_package_type_name TEXT
            , brand TEXT
            , size TEXT
            , valid_from DATE
            , valid_to DATE
            , current_record BOOLEAN
        );

        ALTER TABLE analytics.dim_products ADD PRIMARY KEY (stock_item_id)
    """)
    conn.execute(stmt)
    conn.commit()

Dates

Create a dimension table for dates.

Select a range from 1 year before the minimum date in the database to 1 year after the maximum date in the database.

with wwi_analytics_engine.connect() as conn:
    stmt = text(f"""
        CREATE TABLE analytics.dim_dates AS
        SELECT * FROM dblink(
            '{dblink_conn_str}'
            , 'WITH date_range AS (
                SELECT
                    MIN(order_date) AS min_date
                    , MAX(confirmed_delivery_time::DATE) AS max_date
                FROM
                    sales.orders o
                JOIN
                    sales.invoices i ON o.order_id = i.order_id
            )
            SELECT
                date_series::DATE AS date_id
                , EXTRACT(DAY FROM date_series)::INT AS day
                , EXTRACT(MONTH FROM date_series)::INT AS month
                , EXTRACT(YEAR FROM date_series)::INT AS year
                , EXTRACT(QUARTER FROM date_series)::INT AS quarter
                , EXTRACT(DOW FROM date_series)::INT + 1 AS day_of_week
                , TO_CHAR(date_series, ''Day'') AS day_name
                , EXTRACT(DOW FROM date_series) IN (0, 6) AS is_weekend
                , TO_CHAR(date_series, ''Month'') AS month_name
            FROM
                GENERATE_SERIES(
                    (SELECT min_date - INTERVAL ''1 year'' FROM date_range)
                    , (SELECT max_date + INTERVAL ''1 year'' FROM date_range)
                    , ''1 day''
                ) AS date_series;'
        ) AS t(
            date_id DATE
            , day INT
            , month INT
            , year INT
            , quarter INT
            , day_of_week INT
            , day_name TEXT
            , is_weekend BOOLEAN
            , month_name TEXT
        );

        ALTER TABLE analytics.dim_dates ADD PRIMARY KEY (date_id)
    """)
    conn.execute(stmt)
    conn.commit()

Delivery Methods

Create a dimension table for delivery methods.

with wwi_analytics_engine.connect() as conn:
    stmt = text(f"""
        CREATE TABLE analytics.dim_delivery_methods AS
        SELECT * FROM dblink(
            '{dblink_conn_str}'
            , 'SELECT
                delivery_method_id
                , delivery_method_name
            FROM
                application.delivery_methods'
        ) AS t(
            delivery_method_id INT
            , delivery_method_name TEXT
        );

        ALTER TABLE analytics.dim_delivery_methods ADD PRIMARY KEY (delivery_method_id)
    """)
    conn.execute(stmt)
    conn.commit()

Fact Tables

Orders

Create a fact table for orders.

with wwi_analytics_engine.connect() as conn:
    stmt = text(f"""
        CREATE TABLE analytics.fact_orders AS
        SELECT * FROM dblink(
            '{dblink_conn_str}'
            , 'SELECT
                order_id
                , customer_id
                , order_date
                , expected_delivery_date
                , picking_completed_when
            FROM
                sales.orders'
        ) AS t(
            order_id INT
            , customer_id INT
            , order_date DATE
            , expected_delivery_date DATE
            , picking_completed_when TIMESTAMP
        );

        ALTER TABLE analytics.fact_orders ADD PRIMARY KEY (order_id);
        ALTER TABLE analytics.fact_orders ADD CONSTRAINT fk_orders_customer
            FOREIGN KEY (customer_id) REFERENCES analytics.dim_customers(customer_id);
        ALTER TABLE analytics.fact_orders ADD CONSTRAINT fk_orders_date
            FOREIGN KEY (order_date) REFERENCES analytics.dim_dates(date_id);
        CREATE INDEX idx_fact_orders_customer ON analytics.fact_orders(customer_id);
        CREATE INDEX idx_fact_orders_date ON analytics.fact_orders(order_date);
    """)
    conn.execute(stmt)
    conn.commit()

Invoices

Create a fact table for invoices.

with wwi_analytics_engine.connect() as conn:
    stmt = text(f"""
        CREATE TABLE analytics.fact_invoices AS
        SELECT * FROM dblink(
            '{dblink_conn_str}'
            , 'WITH invoice_totals AS (
                SELECT
                    i.invoice_id
                    , SUM(il.line_profit) AS invoice_profit
                    , SUM(il.extended_price) AS invoice_amount
                    , COUNT(il.invoice_line_id) AS invoice_lines_count
                FROM
                    sales.invoices i
                    LEFT JOIN sales.invoice_lines il ON i.invoice_id = il.invoice_id
                GROUP BY
                    i.invoice_id
            ),
            payment_totals AS (
                SELECT
                    invoice_id
                    , SUM(transaction_amount) AS paid_amount
                FROM
                    sales.customer_transactions
                where
                    is_finalized = TRUE
                GROUP BY
                    invoice_id
            )
            SELECT
                i.invoice_id
                , i.order_id
                , pt.paid_amount
                , i.invoice_date
                , i.delivery_method_id
                , i.confirmed_delivery_time
                , i.returned_delivery_data
                , CASE WHEN i.confirmed_delivery_time IS NOT NULL THEN TRUE ELSE FALSE END AS is_delivered
                , it.invoice_profit
                , it.invoice_amount
                , it.invoice_lines_count
            FROM
                sales.invoices i
                LEFT JOIN invoice_totals it ON i.invoice_id = it.invoice_id
                LEFT JOIN payment_totals pt ON it.invoice_id = pt.invoice_id;'
        ) AS t(
            invoice_id INT
            , order_id INT
            , paid_amount NUMERIC
            , invoice_date DATE
            , delivery_method_id INT
            , confirmed_delivery_time TIMESTAMP
            , returned_delivery_data TEXT
            , is_delivered BOOLEAN
            , invoice_profit NUMERIC
            , invoice_amount NUMERIC
            , invoice_lines_count INT
        );

        ALTER TABLE analytics.fact_invoices ADD PRIMARY KEY (invoice_id);
        ALTER TABLE analytics.fact_invoices ADD CONSTRAINT fk_invoices_order
            FOREIGN KEY (order_id) REFERENCES analytics.fact_orders(order_id);
        ALTER TABLE analytics.fact_invoices ADD CONSTRAINT fk_invoice_delivery
            FOREIGN KEY (delivery_method_id) REFERENCES analytics.dim_delivery_methods(delivery_method_id);
        ALTER TABLE analytics.fact_invoices ADD CONSTRAINT fk_invoices_date
            FOREIGN KEY (invoice_date) REFERENCES analytics.dim_dates(date_id);
        CREATE INDEX idx_fact_invoices_order ON analytics.fact_invoices(order_id);
        CREATE INDEX idx_fact_invoices_date ON analytics.fact_invoices(invoice_date);
        CREATE INDEX idx_fact_invoices_delivery_status ON analytics.fact_invoices(is_delivered);
        CREATE INDEX idx_fact_invoices_delivery_method ON analytics.fact_invoices(delivery_method_id);
    """)
    conn.execute(stmt)
    conn.commit()

Order Lines

Create a fact table for order lines.

with wwi_analytics_engine.connect() as conn:
    stmt = text(f"""
        CREATE TABLE analytics.fact_order_lines AS
        SELECT * FROM dblink(
            '{dblink_conn_str}'
            , 'SELECT
                ol.order_line_id
                , o.order_id
                , ol.stock_item_id
                , ol.quantity
                , ol.unit_price
                , il.quantity AS il_quantity
                , il.line_profit AS il_line_profit
                , il.extended_price AS il_extended_price
            FROM
                sales.orders o
                LEFT JOIN sales.order_lines ol ON o.order_id = ol.order_id
                LEFT JOIN sales.invoices i ON i.order_id = o.order_id
                LEFT JOIN sales.invoice_lines il ON i.invoice_id = il.invoice_id AND ol.stock_item_id = il.stock_item_id'
        ) AS t(
            order_line_id INT
            , order_id INT
            , stock_item_id INT
            , quantity INT
            , unit_price NUMERIC
            , il_quantity INT
            , il_line_profit NUMERIC
            , il_extended_price NUMERIC
        );

        ALTER TABLE analytics.fact_order_lines ADD PRIMARY KEY (order_line_id);
        ALTER TABLE analytics.fact_order_lines ADD CONSTRAINT fk_orderlines_order
            FOREIGN KEY (order_id) REFERENCES analytics.fact_orders(order_id);
        ALTER TABLE analytics.fact_order_lines ADD CONSTRAINT fk_orderlines_product
            FOREIGN KEY (stock_item_id) REFERENCES analytics.dim_products(stock_item_id);
        CREATE INDEX idx_fact_order_lines_product ON analytics.fact_order_lines(stock_item_id);
        CREATE INDEX idx_fact_order_lines_order ON analytics.fact_order_lines(order_id);
        CREATE INDEX idx_fact_order_lines_profit ON analytics.fact_order_lines(il_line_profit);
        CREATE INDEX idx_fact_order_extended_price ON analytics.fact_order_lines(il_extended_price);
    """)
    conn.execute(stmt)
    conn.commit()

Update database statistics to ensure optimal query performance.

%%sql
ANALYZE analytics.dim_customers;
ANALYZE analytics.dim_products;
ANALYZE analytics.dim_dates;
ANALYZE analytics.dim_delivery_methods;
ANALYZE analytics.fact_orders;
ANALYZE analytics.fact_invoices;
ANALYZE analytics.fact_order_lines;

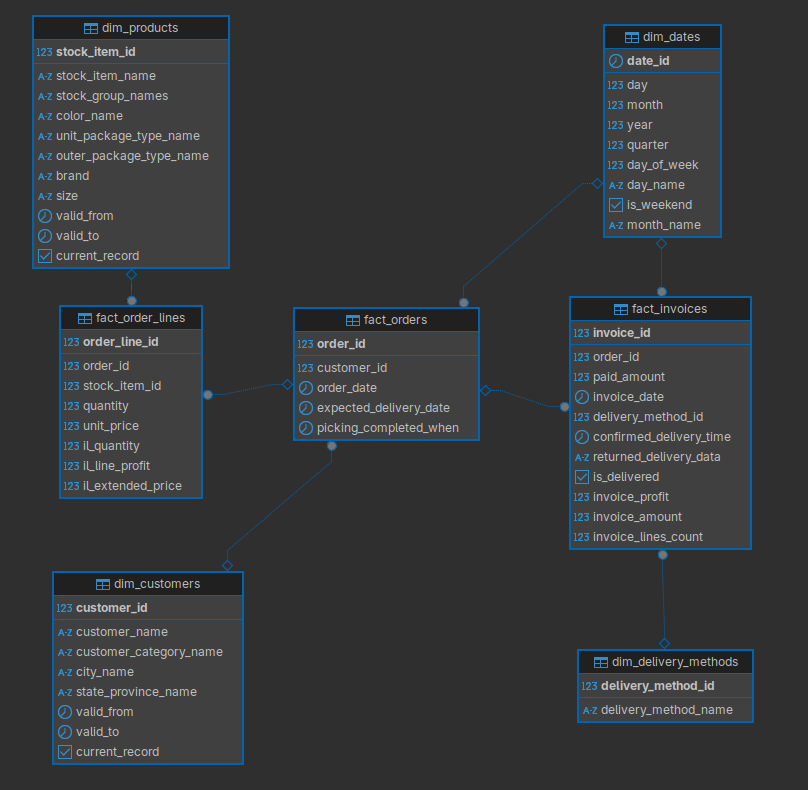

As a result, we obtained the following schema.
